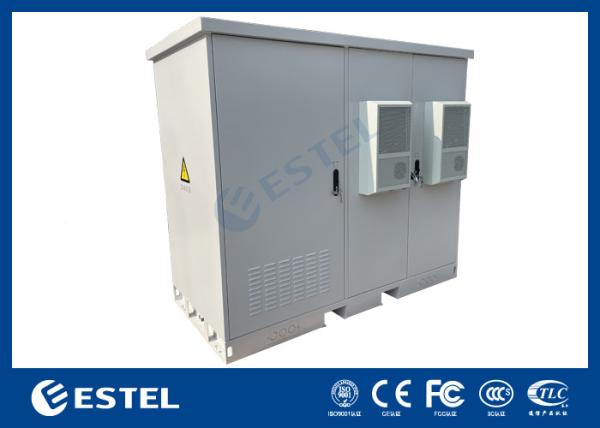

Three Compartment Power Distribution Cabinet For Outdoor Shelter Integrated With Battery

1. Three Compartment Power Distribution Cabinet For Outdoor Shelter Integrated With Battery Applications

Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable

2. Three Compartment Power Distribution Cabinet For Outdoor Shelter Integrated With Battery Specifications

3. Cabinet Diagram

4.Flexibility of Outdoor Rack Enclosures

• Compartments: These enclosures can be configured to support between 1 to 4 bays, allowing for multi-compartment setups.
• Material: Outdoor rack enclosures can be constructed from durable materials such as galvanized steel, sandwich panels, stainless steel (SS304), and aluminum.
• Access: Front and rear access doors provide technicians with easy access to equipment storage areas and facilitate cable routing.
• Side Door Design: Side doors can also be included in the design.
• Custom Colors: While standard color is RAL7035, custom colors are acceptable based on specified color codes.
• Thermal Management: A wide range of thermal management options is available to meet demanding heat dissipation needs, optimizing thermal performance and reducing energy costs.
• Cooling Solutions: Various cooling solutions can be adopted, including compressed air conditioners, thermoelectric coolers (TEC), heat exchangers (HEX), fans, and combined AC & HEX systems.
• Configuration Options: The enclosures offer a wide range of configuration options, providing maximum flexibility, including power distribution units (PDU), rectifiers, and integrated AC-DC power systems.
• Custom Branding: Silk screening for logos and environmentally friendly painting artwork can be applied to the outdoor telecom cabinets.
• Environmental Sensors: Various environmental sensors are available, including door, smoke, and temperature sensors.
• Remote Monitoring: The system supports remote monitoring, with communication protocols such as RS232, RS485, and SNMP.

5. Factory

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG) TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
