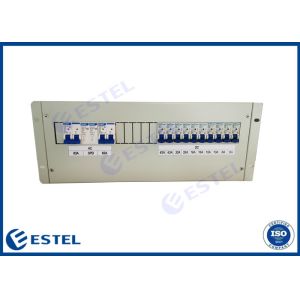

19 Inch Rack Mounted Power Distribution Unit 4U

Installed Inside Outdoor Telecom Cabinet

Model: EA1415001

Introduction

The PDU provide power distribution in outdoor telecom cabinets where electricity connection is required. The power distribution unit can be customized according the each customer’s special demand. Both ACDU and DCDU are available.

Features

■ Customized production

■ Compliant with relevant standards

■ Circuit breaker specs according to customer’s requirement

■ The width of the PDU is 19”, suitable for mounting on 19’’ rail in outdoor telecom cabinet

■ Easy to install with mounting accessories

■ SPD provide surge protection

■ Energy-efficiency

■ Cost-effective

■ Horizontal design

■ Steel profile frame

Specification

SPD: 60KA, grade B surge protection

AC INPUT: MCB 63A/2P×2

DC OUTPUT: MCB 63A/1P×2, 32A/1P×2, 16A/1P×2, 10A/1P×2, 5A/1P×2

Size: 19” 4U

Installation: mounted on 19” rail inside outdoor telecom cabinet.

Connection: 220VAC mains power, 48VDC rectifier, 48VDC battery

Wiring Diagram

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG) TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
