Steel Weatherproof Rack Enclosure 19 Inch Equipment Installation Rack

1. Application

outdoor telecommunication enclosure is designed to house a variety of batteries and equipment, they provide protection from vandalism, dust, rain, snow and dripping water. It offers standard 19-inch racking rails and battery shelves, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.

2. Features

• The cabinet includes 19” equipment installation rack.
• The cabinet includes one air conditioner and two fans, installed on front door.
• The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

3. Technical Parameters

4. Accessories List

5. Enclosure Cooling

Air Conditioner 1500W and two pcs Fans

6. Cabinet Structure

(1) External Dimension: 750×750×1850mm

(2) 1 compartment

(3) With one front door , and special lock for outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

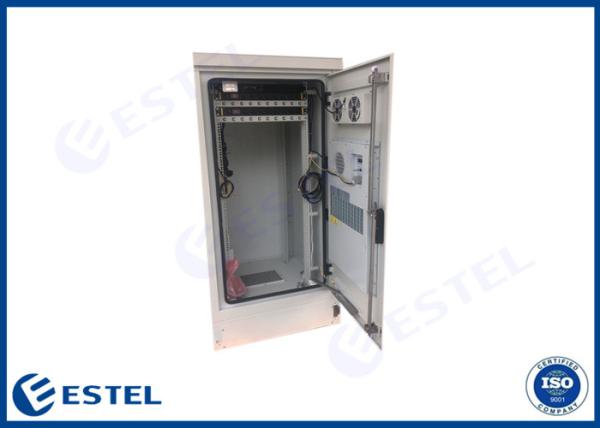

7. Cabinet Picture

8. Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
