35u Rack Environment Monitoring Unit DC48V Fans Outdoor Telecom
Enclosure
1. Description Of Outdoor Telecom Enclosure
Typical equipment being housed includes Computer, DVR, CCTV,
Communications, Surveillance, Switches, Routers etc. and in many
cases includes power rectification and battery back-up. The
enclosures are normally multi chambered and enables the differing
facilities to be separated for security/specific thermal
requirements i.e. a separate battery chamber requiring lower
operating temperature than active equipment chamber.
2. Structure
(1) Cabinet External Dimension: 1000*1500*2000mm(D*W*H);
Height of cabinet base: 200mm;
Height of top cover: 150mm
Material: cold rolled steel, outdoor power coat
(2) The cabinet is splicing type cabinet, with two front doors, one
left compartment and one right compartment.
(3) For each compartment, there are 19” rack and 35U space for
installing equipments.
3. Enclosure And Accessories List
| No. | Item | Quantity | Unit | Remark |
| 1 | Outdoor Telecom Cabinet 1000*1500*2000mm (D*W*H) | 1 | set | |
| 2 | Fans DC48V | 4 | set | |
| 3 | Temperature Switch | 2 | pcs | |
| 4 | Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1
water sensor, and 1 temperature and humidity sensor.) | 1 | set | 2U environment monitoring unit is optional |
| 5 | PDU (grade B lightening arrestor, 63A/2P*1, 63A/1P*2, 32A/1P*2,
16A/1P*4, repair socket *1) | 1 | Set | |
| 6 | Packing: carton+ pallet | 1 | Set | |
4. Technical Parameters
| Item | Technical Parameter |
| Temperature | Working temperature range: -40℃~ +60℃ |
| Sorage temperature range: -50℃~ +70℃ |
| Transport temperature range: -50℃~ +70℃ |
| Relative Humidity | 5%-- 100% |
| Air Pressure | 62kpa~ 101kpa (similar to altitude 0m ~ 5000m) |
| Radiation Intensity | 1400* (1±5%) W/m2 |
| Protection Grade | IP45 |
5. Enclosure Cooling
2 DC48V fans for each compartment, totally 4 fans.
6. Application Of Outdoor Telecom Enclosure
The intelligent temperature measuring machine can be installed in
the main entrances of crowded places such as enterprises,schools,
hotels, shopping malls, office buildings, banks, government halls,
etc., to monitor the temperature of employees, customers, and
visitors in real time, effectively helping to prevent epidemics.

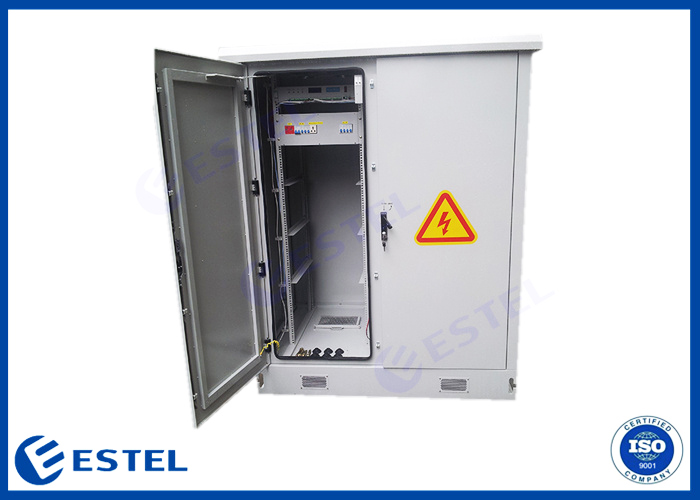

7. Drawing and Pictures
8. Grounding Protection
(1) The cabinet includes grounding copper bar with anti-corrosion
coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be
connected with grounding bar. Connection resistance between any two
points is lower than 0.1Ω.
(3) Protective earthing of other equipments inside the cabinet
should be connected to the grounding bar.
