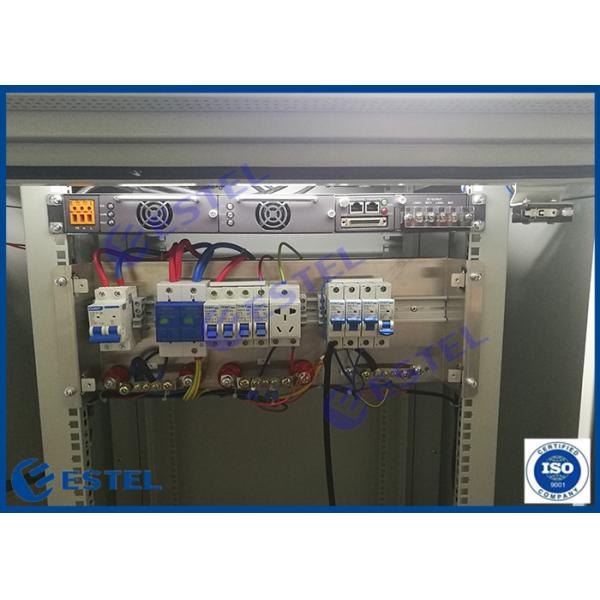

3200W 60A Telecom Power Supply Rectifier Input 220VAC Output 48VDC

Two 30A Rectifier Module One Monitoring Module

Model: GPE4860G

I. System configuration

The system consists of distribution unit, rectifier module (up to 2 sets) and 1 monitoring module. The configuration is optional, as following table:

II. Operating principle

Under normal conditions, every parameter of rectifier modules and distribution unit are all under control of the monitoring module, operating according to the pre-set parameter or user’s commands. If AC mains fault, the system will be powered by the battery. With the battery discharge, the terminal voltage of the battery starts to descend. When the battery voltage is under 42V±0.5V, the monitoring module reports battery under voltage alarm signal and cuts off the load output, then the power system stops working. When the external AC mains recovers, the system will resume to the normal work state. (All above monitoring data are system default values that users can reset).

Except for battery over-discharge protection, battery or load over-temperature protection is prohibitive under default, users can send command to activate or inactivate according to the demanding. When the operating temperature is 55°C or more, power de-rating will be employed by system (at 65°C,system output power is 2600W).

III. Application

■ Small scale program controlled exchanger

■ Access network

■ Transmission equipment

■ Mobile communication

■ Satellite communication ground station

■ Microwave communication

IV. System Specifications

Input
Parameter	Min.	Typical	Max.	Unit	Remark
Input voltage range	90	220	280	Vac	Nominal operating voltage: 100V-240V
Input frequency	45	50	65	Hz
Inrush current			50	A	Cold start @ 25°C, 280 Vac input,Tested at full load
Power factor	0.99

Output
Parameter	Min.	Typical	Max.	Unit	Remark
Output voltage rating		-53.5		Vdc
Output voltage range	-43.2	-53.5	-57.6	Vdc
Output current range	0		60	A	176~280VAC
Ripple (Vp-p)			200	mv	After 1-hour operation at low temperature, apply 0.1uF film capacitor and 10uF HF electrolyte capacitor, oscilloscope band width of 20MHz, with 20CM twisted pair.
Output efficiency	90			%	220Vac input, rated output
	83			%	110Vac input, 15A output
Regulation			±2	%
Load regulation			±2	%
Line regulation			±1	%
Output power			3200	W	176-280V Input
			1600	W	90-175V Input

Mechanical specifications
Dimensions (Overall)	442mm×250mm×43.5mm
Weight(kg) (Overall)	≤7Kg(including modules)

V. Electric connection

Chassis connects with external electric through system interface board. As shown in figure below:

VI. Functions of monitoring module

Item	Remark
Remote monitoring of the host	The host can conduct enquiries, settings and control upon the monitoring and realize the remote message, remote sense and remote control.
Rectifier management by monitoring module	To send controlling orders or to get data from the rectifier module via RS485 communication.
Battery management	To manage low voltage, power down, equalizing/float charge, temperature compensation of the battery.
Output management by monitoring module	To inspect and control the system
LED indicator	Signal indication
2 dry contacts output	AC fail alarm; battery under-voltage alarm output
COM port signal	Sensor input and dry contact output
For details, please refer to specifications of “GPM48M / GPM48F”.

VII. Rectifier Module Specifications

Introduction
